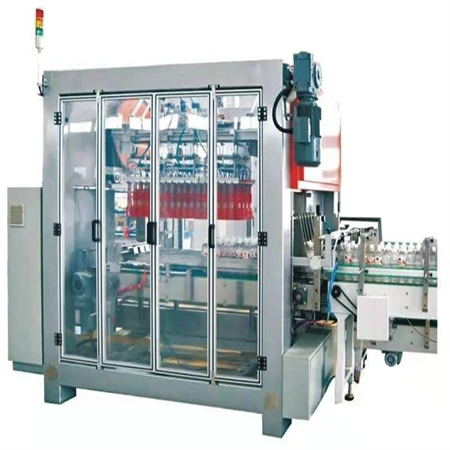

Shineye Mach Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm Grab Automatic Packing Tshuab hauv Suav teb. Yog hais tias koj yuav mus yuav tus tshiab Grab Automatic Packing Tshuab ua nyob rau hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Product Overview: Maj mam tuav ntawm kev kub ceev
Cov ntaub ntawv no siv servo-tswj lub taub hau es tsis txhob ntim ntim. Tso cov packers tsuas qhib lub qhov rooj thiab cia cov fwj poob rau hauv rooj plaub. Qhov ntawd ua haujlwm rau cov kaus poom tab sis chips iav caj dab thiab cuam tshuam lub teeb yuag PET. Peb lub taub hau gripper nqa kab ntawm cov thawv, txav mus rau kab rov tav ntawm txoj kab ncaj nraim, tom qab ntawd txo lawv nrog kev tswj qhovntsej thiaj tsis mob rau hauv lub thawv. Lub tshuab voj voog ntawm 800 txog 2,000 tus neeg mob ib teev. Kev hloov pauv los ntawm ib qho - txheej mus rau ob - txheej ntim tshwm sim ntawm lub vijtsam kov, thiab cov ntawv muab faib ua haujlwm tau txais.
Ntsiab Technical Specifications
|
Parameter |
Paub meej |
|
Tshaj tawm |
800 - 2,000 tus neeg hauv ib teev |
|
Ntim hom |
PET, iav, tinplate (30-150mm txoj kab uas hla) |
|
Qhov siab ntau |
50-350 hli |
|
Gripper suav |
5 lub taub hau ywj pheej |
|
Txheej |
1 lossis 2 nrog kev muab faib tsis siv neeg |
|
Qhov Loj (L × W × H) |
200-500mm × 150-400mm × 100-400mm |
|
Tus tswj |
PLC (Delta) + 7-inch HMI |
|
Servo axes |
3 (lift, hla, tuav dav) |
|
Pneumatics |
AirTac lub tog raj kheej thiab li qub |
|
Huab cua |
0.5-0.6MPa |
|
Hluav taws xob |
220/380V, 50/60Hz, 3 theem |
|
Tshuab hneev taw (L × W × H) |
5000 × 1500 × 1800 hli |
|
Qhov hnyav |
~ 2000 kg |
Khoom siv thiab tsim cov ntsiab lus tseem ceeb
Gripper ntsej muag khoom
Txhua tus gripper siv cov silicone roj hmab hloov tau nrog FDA- ntawv pov thawj qib. iav yuav tsum muaj kev sib txhuam tsis muaj qhov taw tes siab; PET xav tau kev sib cuag dav kom tsis txhob denting. Cov ntaub qhwv tuaj yeem tshem tau los ntxuav thiab kav ntev li 12-18 lub hlis hauv ob- ua haujlwm hloov. Txhua lub tshuab ships nrog ob lub ncoo ntxiv.
Ncej kev tsim kho
Lub ntsiab qauv yog 6 hli steel phaj nrog electrostatic hmoov txheej. Phab ntsa thickness tseem ceeb ntawm no: nyias tubing flexes thaum lub sij hawm siab - ceev traversing, ua misalignment. Peb welded thav duab tuav squareness nyob rau hauv 0.5mm tshaj tag nrho 5-meter ntev. Ib lub raj mis cola hauv Bangladesh qhia xoom xeb tom qab peb xyoos ntawm kev ntxuav txhua hnub.
Servo zog system
Peb ywj siab servo motors tswj nqa, traverse, thiab gripper dav. Lub nqa servo suav nrog tus tuav nres, yog li lub taub hau nyob twj ywm siab yog tias huab cua tsis ua haujlwm. Lub traverse servo siv S- nkhaus acceleration, tshem tawm lub raj mis sway ntawm 2,000 mob ib teev. Gripper siab yog digitally teem: 30% rau nyias -walled PET, 70 rau iav hnyav.
Muab faib feeder
Ob - txheej ntim yuav tsum muaj corrugated ncoo ntawm txheej. Peb lub tshuab rub ib qho kev faib tawm los ntawm cov ntawv xov xwm ntsug, tig nws 90 degrees, thiab muab nws tso rau ntawm thawj txheej. Phau ntawv xov xwm tuav 50 partitions. Refill yuav siv li ntawm ib feeb.
Daim Ntawv Thov: Cov Kab Ntau Lawm Tiag
No Grab Automatic Packing Machine ua haujlwm nrog
iav fwj
npias, kua txiv, kua ntses, roj (330ml txog 1.5L)
PET lub raj mis
dej, carbonated dej qab zib, roj noj (350ml txog 2L)
Tinplate poom
haus dej haus, txiv hmab txiv ntoo kaus poom, condensed mis nyuj (150ml txog 500ml)
Aluminium fwj
premium dej, dej haus kis las
Piv txwv hauv teb - Ib lub raj mis kua txiv hauv Nigeria tau ntim 600 tus neeg nyob rau ib teev nrog 12 tus neeg ua haujlwm. Kev tawg tau khiav 3% los ntawm cov iav poob. Tom qab txhim kho peb lub hnab ntim khoom, plaub tus neeg ua haujlwm khiav txoj kab ntawm 1,400 tus neeg mob hauv ib teev. Kev tawg poob rau 0.3% hauv thawj lub hlis. Kev txuag nyiaj ua haujlwm thiab txo cov khoom poob tau them rau lub tshuab hauv cuaj lub hlis.
Tuam Txhab Keeb Kwm & Kev Txhim Kho
Xiangyi Machinery tau tsim nyob rau xyoo 2002. Peb pib ua lub khw muag khoom dav dav nrog 100+ cov neeg ua haujlwm thiab 50+ cov cuab yeej siv tshuab. Tshaj li 22 xyoos, peb tau tsom mus rau tag nrho cov tshuab ntim khoom rau dej haus thiab zaub mov. Peb cov cuab yeej siv tam sim no khiav hauv ntau tshaj 40 lub teb chaws.
Cov ntsiab lus tseem ceeb rau cov neeg siv khoom ntim khoom
2006 - Thawj rub packer xa tawm (Tajikistan dej kab)
2008 – Launched ob - txheej ntim nrog nws pib muab faib
2012 - Hloov los ntawm pneumatic mus rau tag nrho servo gripper tswj
2016 - Qhib qhov chaw seem hauv Jakarta
2019 - Ntxiv tej thaj chaw deb PLC kuaj mob ntawm WhatsApp video
2023 - Tau txais daim ntawv pov thawj CE rau txhua tus qauv
Peb tsim nyob rau hauv peb tus kheej 25,000m² Hoobkas. Peb yuav khiav koj lub raj mis thiab rooj plaub ntawm lub tshuab kuaj thiab xa koj cov yeeb yaj kiab uas tsis tau kho ua ntej koj them.
Hoobkas
cov neeg ua haujlwm
xyoo
Txheej txheem ntau lawm (Simplified)
Ncej txiav & vuam - Laser- txiav steel, welded rau saum daim hlau rau flatness
Txheej - Sandblast, ces electrostatic hmoov txheej (ob txheej)
Gripper los ua ke - CNC-machined aluminium lub cev, silicone pads ntsia
Rail mounting - European linear guides, roj- puv rau lub neej
Vaj huam sib luag thaiv - Cov xov tooj uas muaj npe, cov ntawv sau npe, hauv -lub tsev PLC programming
Pneumatic xeem - 6-teev khiav ntawm 0.6 MPa, txheeb xyuas nrog xab npum
Kev xeem tag nrho - 4-teev khiav nrog cov neeg siv khoom siv lub raj mis thiab rooj plaub
Cov ntaub ntawv yees duab - Cov ntawv xeem tag nrho, los ntawm cov ntaub ntawv nkag mus rau cov ntaub ntawv kaw
Crating - Plywood box, noo noo barrier, ceeb toom ceeb toom
Txhua lub tshuab tau txais tus lej xov tooj thiab daim ntawv xeem. Peb yeej tsis xa cov khoom siv tsis tau kuaj.
Customer Case Piv txwv
|
Xyoo |
Lub teb chaws |
Khoom |
Tso zis |
Tseem khiav |
|
2021 |
Nigeria |
iav kua txiv fwj |
1,400 kis / teev |
Yog lawm |
|
2019 |
Indonesia |
Cov kaus poom muaj zog haus |
1,800 kis / teev |
Yog lawm |
|
2020 |
Uzbekistan |
PET dej (0.5L) |
1,600 kis / teev |
Yog lawm |
|
2018 |
Thaib teb |
PET roj ua noj (1L) |
1,200 kis / teev |
Yog lawm |
|
2022 |
Bangladesh |
Khob dej qab zib |
1,500 kis / teev |
Yog lawm |
Cov nqi sib txawv nrog lub raj mis loj thiab cov qauv qauv. Tiv tauj peb rau ib kab - kev xeem tshwj xeeb.
Kev Pabcuam Pob
Ua ntej- muag
Peb thov cov qauv ntawm koj lub raj mis thiab ib rooj plaub. Peb kuaj hauv peb lub khw thiab xa cov yeeb yaj kiab uas tsis tau kho. Tsis muaj exaggeration kev ua tau zoo.
Thaum txiav txim
Cov duab sib dhos txhua lub lim tiam nrog koj tus lej cim pom.
Kev teeb tsa & kev cob qhia
Yees duab- phau ntawv nplua nuj nrog rau kev hu xov tooj nyob hauv video.
Warranty
12 lub hlis ntawm qhov chaw. Cov khoom lag luam hauv zos ntawm gripper ncoo, sensors, servo cables, thiab PLCs.
Ntev - txhawb nqa lub sijhawm
WhatsApp teb hauv 24 teev (Tuam Tshoj nruab hnub). Cov khoom muaj rau cov qauv rov qab rau xyoo 2010.
FAQ
1. Dab tsi txhais tau tias lub tshuab ntim tsis siv neeg rub?
2. Yuav ua li cas lub gripper tsis txhob crushing ntim?
3. Grab packer vs drop packer vs manual – Dab tsi yog qhov txawv?
4. Ib lub tshuab puas tuaj yeem tuav lub raj mis sib txawv thiab qhov ntau thiab tsawg?
5. Yuav ua li cas thaum lub raj mis tawm ua ntej lub gripper tuaj txog?
6. Koj lub tshuab ua haujlwm nyob qhov twg hauv cov dej haus tiag tiag?
Vim li cas kuaj koj cov thawv ntim khoom ua ntej xaj?
Catalog specs tsis quav ntsej koj lub raj mis tshwj xeeb, cov ntaub ntawv haum, thiab muab faib ua kom nruj. Daim ntawv qhia glossy yuav tsis qhia koj seb tus gripper cim koj cov ntawv lossis cov ntawv muab faib rau ntawm koj daim duab los qhia. Peb thov rau ib rooj plaub ntawm koj lub raj mis thiab ib lub thawv qauv. Peb khiav lawv ntawm lub tshuab kuaj hauv peb lub rooj cob qhia thiab xa koj cov yeeb yaj kiab tag nrho, tsis tau hloov kho. Koj pom txhua lub voj voog. Ces koj txiav txim siab.
Thov kuaj nrog koj lub raj mis - Xa peb
Hom thawv (iav, PET, tuaj yeem) thiab qhov ntev (inch × qhov siab)
Case qhov ntev (L × W × H) thiab cov qauv ntim (piv txwv li, 4 × 3 ib txheej)
Lub hom phiaj ceev (txog ib teev) thiab cov txheej txheem (1 lossis 2)
Yuav tsum muab faib? Yog los tsis yog (duab nyiam)
Peb yuav teb tsis pub dhau 48 teev nrog cov yeeb yaj kiab sim, cov qauv kev pom zoo, thiab daim ntawv tso cai PDF uas suav nrog cov ntaub qhwv ntsej muag thiab daim ntawv teev cov khoom seem.
